org.iso.mpeg.dash.SegmentBaseType Class Reference

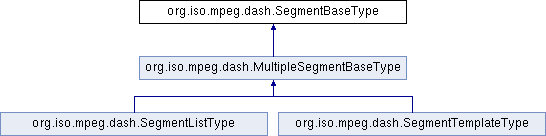

Inheritance diagram for org.iso.mpeg.dash.SegmentBaseType:

Public Member Functions
URLType	getInitialization ()
void	setInitialization (URLType value)
URLType	getRepresentationIndex ()
void	setRepresentationIndex (URLType value)
List< Element >	getAnies ()
Long	getTimescale ()
void	setTimescale (Long value)
BigInteger	getPresentationTimeOffset ()
void	setPresentationTimeOffset (BigInteger value)
Duration	getTimeShiftBufferDepth ()
void	setTimeShiftBufferDepth (Duration value)
String	getIndexRange ()
void	setIndexRange (String value)
boolean	isIndexRangeExact ()
void	setIndexRangeExact (Boolean value)
Map< QName, String >	getOtherAttributes ()

Protected Attributes
URLType	initialization
URLType	representationIndex
List< Element >	anies
Long	timescale
BigInteger	presentationTimeOffset
Duration	timeShiftBufferDepth
String	indexRange
Boolean	indexRangeExact

Detailed Description

Java class for SegmentBaseType complex type.

The following schema fragment specifies the expected content contained within this class.

<complexType name="SegmentBaseType">
  <complexContent>
    <restriction base="{http://www.w3.org/2001/XMLSchema}anyType">
      <sequence>
        <element name="Initialization" type="{urn:mpeg:dash:schema:mpd:2011}URLType" minOccurs="0"/>
        <element name="RepresentationIndex" type="{urn:mpeg:dash:schema:mpd:2011}URLType" minOccurs="0"/>
        <any processContents='lax' namespace='##other' maxOccurs="unbounded" minOccurs="0"/>
      </sequence>
      <attribute name="timescale" type="{http://www.w3.org/2001/XMLSchema}unsignedInt" />
      <attribute name="presentationTimeOffset" type="{http://www.w3.org/2001/XMLSchema}unsignedLong" />
      <attribute name="timeShiftBufferDepth" type="{http://www.w3.org/2001/XMLSchema}duration" />
      <attribute name="indexRange" type="{http://www.w3.org/2001/XMLSchema}string" />
      <attribute name="indexRangeExact" type="{http://www.w3.org/2001/XMLSchema}boolean" default="false" />
      <anyAttribute processContents='lax' namespace='##other'/>
    </restriction>
  </complexContent>
</complexType>

Member Function Documentation

getAnies()

List<Element> org.iso.mpeg.dash.SegmentBaseType.getAnies ( )

inline

Gets the value of the anies property.

This accessor method returns a reference to the live list, not a snapshot. Therefore any modification you make to the returned list will be present inside the JAXB object. This is why there is not a set method for the anies property.

For example, to add a new item, do as follows:

   getAnies().add(newItem);

Objects of the following type(s) are allowed in the list Element

getIndexRange()

String org.iso.mpeg.dash.SegmentBaseType.getIndexRange ( )

inline

Gets the value of the indexRange property.

Returns

possible object is String

getInitialization()

URLType org.iso.mpeg.dash.SegmentBaseType.getInitialization ( )

inline

Gets the value of the initialization property.

Returns

possible object is URLType

getOtherAttributes()

Map<QName, String> org.iso.mpeg.dash.SegmentBaseType.getOtherAttributes ( )

inline

Gets a map that contains attributes that aren't bound to any typed property on this class.

the map is keyed by the name of the attribute and the value is the string value of the attribute.

the map returned by this method is live, and you can add new attribute by updating the map directly. Because of this design, there's no setter.

Returns

always non-null

getPresentationTimeOffset()

BigInteger org.iso.mpeg.dash.SegmentBaseType.getPresentationTimeOffset ( )

inline

Gets the value of the presentationTimeOffset property.

Returns

possible object is BigInteger

getRepresentationIndex()

URLType org.iso.mpeg.dash.SegmentBaseType.getRepresentationIndex ( )

inline

Gets the value of the representationIndex property.

Returns

possible object is URLType

getTimescale()

Long org.iso.mpeg.dash.SegmentBaseType.getTimescale ( )

inline

Gets the value of the timescale property.

Returns

possible object is Long

getTimeShiftBufferDepth()

Duration org.iso.mpeg.dash.SegmentBaseType.getTimeShiftBufferDepth ( )

inline

Gets the value of the timeShiftBufferDepth property.

Returns

possible object is Duration

isIndexRangeExact()

boolean org.iso.mpeg.dash.SegmentBaseType.isIndexRangeExact ( )

inline

Gets the value of the indexRangeExact property.

Returns

possible object is Boolean

setIndexRange()

void org.iso.mpeg.dash.SegmentBaseType.setIndexRange ( String  value )

inline

Sets the value of the indexRange property.

Parameters

value

allowed object is String

setIndexRangeExact()

void org.iso.mpeg.dash.SegmentBaseType.setIndexRangeExact ( Boolean  value )

inline

Sets the value of the indexRangeExact property.

Parameters

value

allowed object is Boolean

setInitialization()

void org.iso.mpeg.dash.SegmentBaseType.setInitialization ( URLType  value )

inline

Sets the value of the initialization property.

Parameters

value

allowed object is URLType

setPresentationTimeOffset()

void org.iso.mpeg.dash.SegmentBaseType.setPresentationTimeOffset ( BigInteger  value )

inline

Sets the value of the presentationTimeOffset property.

Parameters

value

allowed object is BigInteger

setRepresentationIndex()

void org.iso.mpeg.dash.SegmentBaseType.setRepresentationIndex ( URLType  value )

inline

Sets the value of the representationIndex property.

Parameters

value

allowed object is URLType

setTimescale()

void org.iso.mpeg.dash.SegmentBaseType.setTimescale ( Long  value )

inline

Sets the value of the timescale property.

Parameters

value

allowed object is Long

setTimeShiftBufferDepth()

void org.iso.mpeg.dash.SegmentBaseType.setTimeShiftBufferDepth ( Duration  value )

inline

Sets the value of the timeShiftBufferDepth property.

Parameters

value

allowed object is Duration

---

The documentation for this class was generated from the following file:

• DASH/mpdvalidator/src/org/iso/mpeg/dash/SegmentBaseType.java
